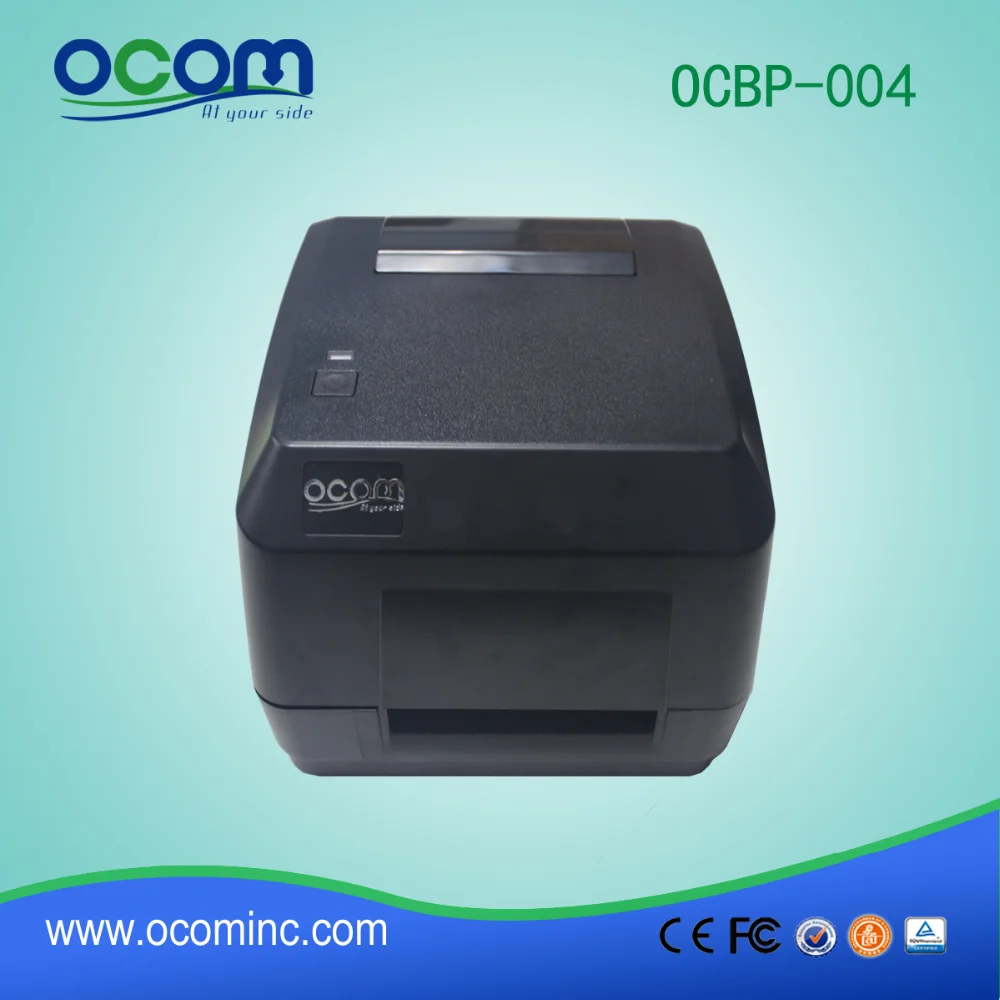

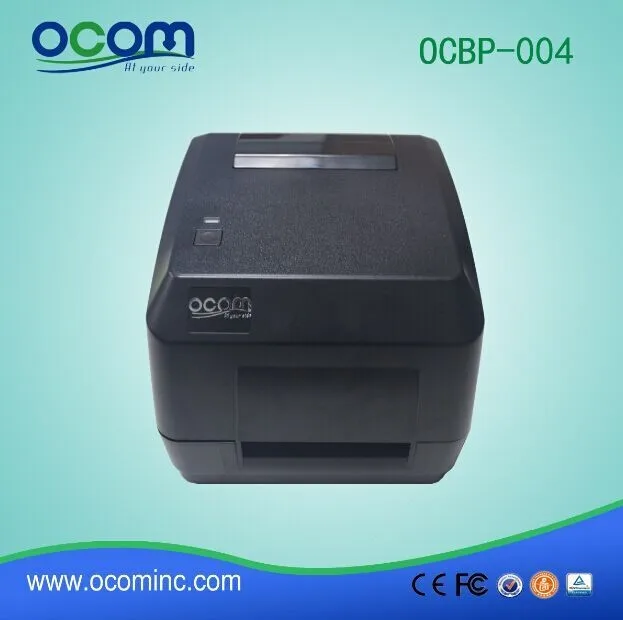

OCBP-004 4 Inch Thermal Transfer And Direct Thermal BarCode Label Printer Machine

FOB Reference Price:Get Latest Price
$120.00 - $180.00 / Pieces | 1 Piece/Pieces (Min. Order)
Color:
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
bar code printer
Style:
Black And White
Use:
sticker printer
Interface Type:
Bluethooth/USB
Max Paper Size:
108 mm (4.25")
Black Print Speed:
90mm/sec(max)
Color Print Speed:
bar code printer
Max. Resolution:
12 dots/mm(300 DPI)
Brand Name:
OCOM / OEM /Nuetral
Model Number:
OCBP-004
Place of Origin:
Guangdong, China (Mainland)
type:
label printer
Label length:
10 ~ 2,794 mm (0.39" ~ 110")
Physical dimension:
234 mm(W)*194.8 mm(H)*302.5 mm (D)
Weight:
3.1 kg(6.83 lbs)
Processor:
32-bit RISC CPU
Power Input:
AC 100-240V, 1A, 50-60Hz
Power output:
DC 24V, 2.5A, 60W
Font and barcode rotation:
0°,90°,180°,270°
Printer language:
TSPL (EPL,ZPL,DPL)
Safety regulation:
FCC,CE, CCC,CB
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
single box size: 45*35*35cm G.W: 4.5kgs
4 pcs in a carton box: size: 67*45*65cm . G.W: 20KGS
Port
Shenzhen,Guangzhou,Hongkong
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 To be negotiated

OCBP-004 4 Inch Thermal Transfer And Direct Thermal BarCode Label Printer Machine

Label Printer,Barcode Label Printer,Label Printer Machine



Product Description

Features

200 Mhz 32-Bit RISC Processor With 8 MB SDRAM, 4 MB Flash Memory

Dual-Motor Gear Driven Design

127 Mm (5”) Inches Per Second Print Speed

300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core

Print Mechanism For Kiosk Application

TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support





PRINTER MODEL

OCBP-004A

OCBP-004B

Resolution

8 dots/mm(203 DPI)

12 dots/mm(300 DPI)

Printing method

Thermal Transfer & Direct Thermal

Max. print speed

127 mm (5”) / s

101.6 mm (4”) / s

Max. print width

108 mm (4.25”)

104 mm (4.09”)

Max. print length

2794 mm (110”)

1016 mm (40”)

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20-112mm (0.78”-4.4”)

Media thickness

0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Label length

10 ~ 2,794 mm (0.39” ~ 110“)

10 ~ 1,016 mm (0.39” ~ 40“)

Label roll capacity

127 mm (5“) OD (outside wound)

Ribbon&Ribbon width

300 m long, max. OD 67 mm, 1“ core (ink coated outside) ,40 mm ~ 110 mm (1.6” ~ 4.3”)

Enclosure

Double-walled plastic

Physical dimension

234 mm(W)x194.8 mm(H)×302.5 mm (D)

Weight

3.1 kg(6.83 lbs)

Processor

32-bit RISC CPU

Memory



4MB Flash Menmory

8MB SDRAM

SD card reader for Flash memory expansion, up to 4 GB

Interface

• USB2.0• RS-232 (factory option)• Centronics (factory option)• Internal Ethernet, 10/100 Mbps (factory option)

• Bluethooth (factory option)• External 802.11 b/g/n wireless (factory option)

Power



External universal switching power supply

Input: AC 100-240V, 1A, 50-60Hz

Output: DC 24V, 2.5A, 60W

Operation switch,button,LED

1 power switch, 1 feed button & 1 LED (3 colors: red, purple & bule)

Sensors

Black mark reflective sensor (position adjustable)

Head open sensor

Transmissive gap sensor

Ribbon end sensor

Real Time Clock

Standard

Internal fonts

8 alpha-numeric bitmap fonts

Support TTF Font.

Bar code

1D barcode:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits  add-on, MSI, PLESSEY, POSTNET, China POST

2D bar code:PDF-417, Maxicode, DataMatrix, QR code

Graphic

BIMAP,BMP,PCX(Max. 256 colors)

Font and barcode rotation

0°,90°,180°,270°

Printer language

TSPL (EPL,ZPL,DPL)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing

Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCC,CE, CCC,CB

Environmental concern

Comply with RoHS

Accessories

Windows labeling software CD disk;Quick start guide;USB cable;Power cord;External universal switching power supply;Label spindle, fixing tab x 2, 1.5“ core adapter x 2;Ribbon spindle x 2;Ribbon paper core;Media

Factory options

Internal Ethernet, 10/100 Mbps, RS-232  ,Centronics parallel interface

Dealer options

Peel-off module, Guillotine cutter (full cut or partial cut) Media thickness 0.06 ~ 0.19mm,500000 cuts;0.20 ~ 0.25mm,200000 cuts

User options

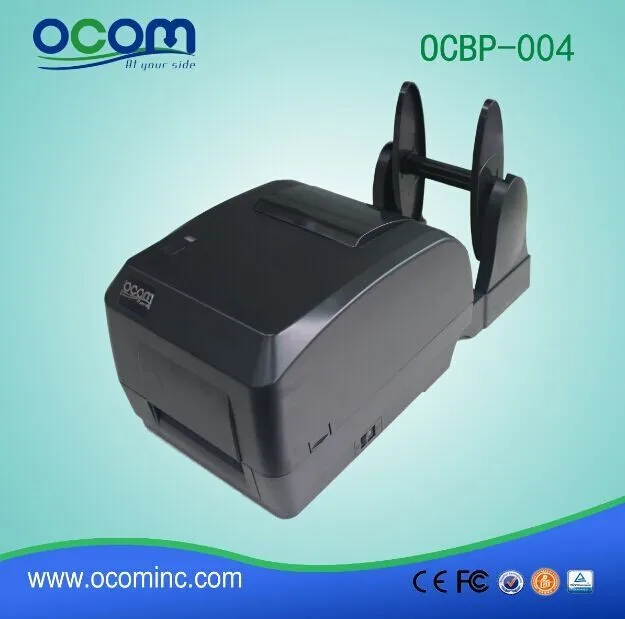

External roll mount, media OD. 214 mm (8.4”) with 25.4 mm (1”) core , External roll mount board,  Bluetooth module (serial interface), 802.11 b/g/n wireless module (serial interface), RFIDmodule.




























OCBP-004 4 inch Thermal Transfer and direct thermal  BarCode Label Printer machine

label printer,barcode label printer,label printer machine
