Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OCOM or OEM
  • Model Number: OCBP-005
  • Printing Method: Direct Thermal
  • Paper width: 16 mm ~ 82 mm
  • Memory: 2MB Flash Rom, 2MB DRAM
  • Interface: USB + RS232C + LAN or USB
  • Resolution: 203 DPI (8 dot/mm)
  • Image: Monochromatic PCX, BMP image files can be load to FLASH, DRAM
  • Printing Speed: 127 mm / sec (max); 50.8mm/sec (min)
  • Printing head temperature sensor: Thermal sensitive resistance
  • Dimension: Size: D220mm * H148mm *W150mm
  • Weight: Net weight: 1.96KG, Gross weight: 2.47 Kg

Packaging & Delivery

Packaging Details "One pc in a inner carton, 6pcs into a out carton
Inner carton size: 30*22*19cm Gross weight: 2.47kg
Out carton size:70*34*45cm Gross weight: 17kgs
Delivery Time 3-7 days

Specifications

Best price 3 Interfaces User-friendly Direct Thermal Barcode Label Printer
USB + RS232C + LAN or USB
Label paper auto position

Best price 3 Interfaces User-friendly Direct Thermal Barcode Label Printer

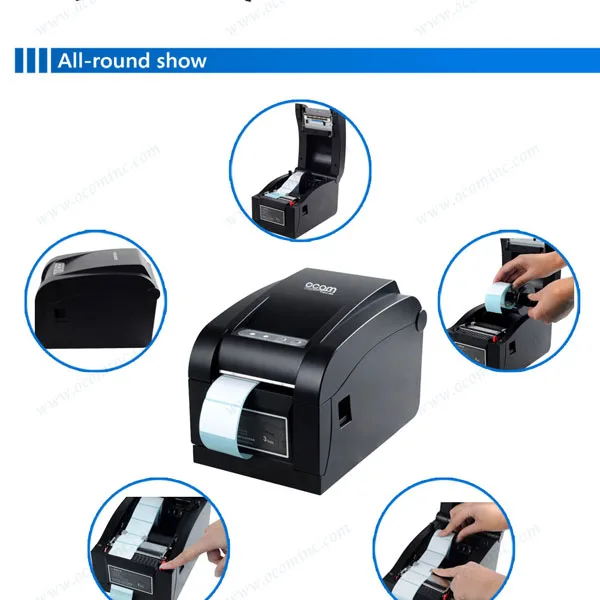

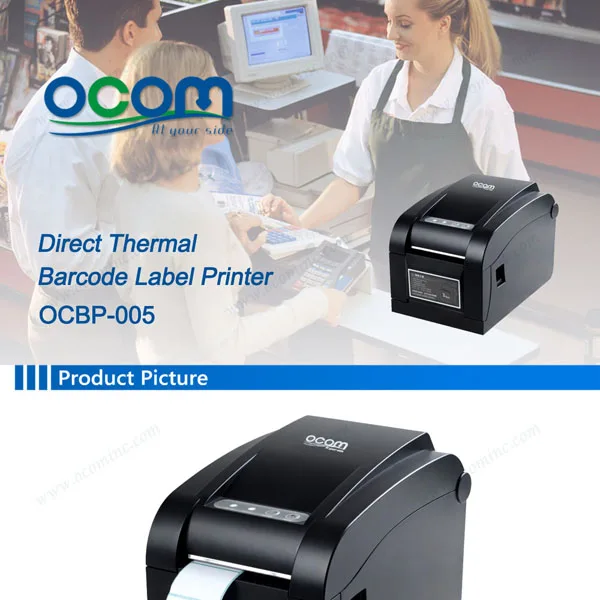

Direct Thermal Barcode Label Printer

(OCBP-005)

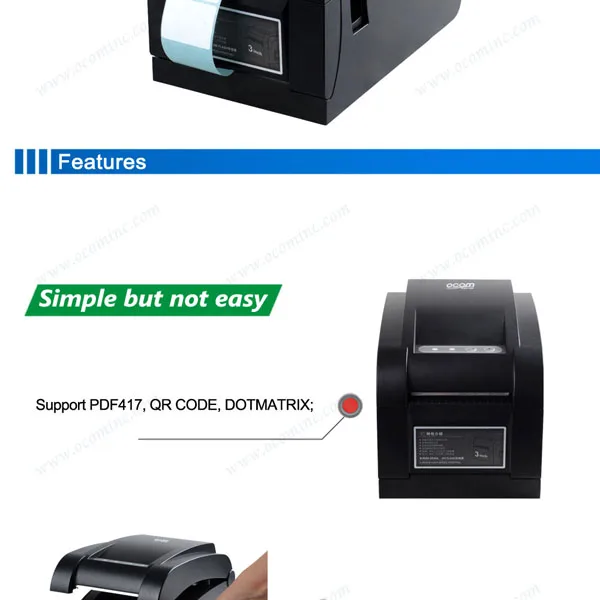

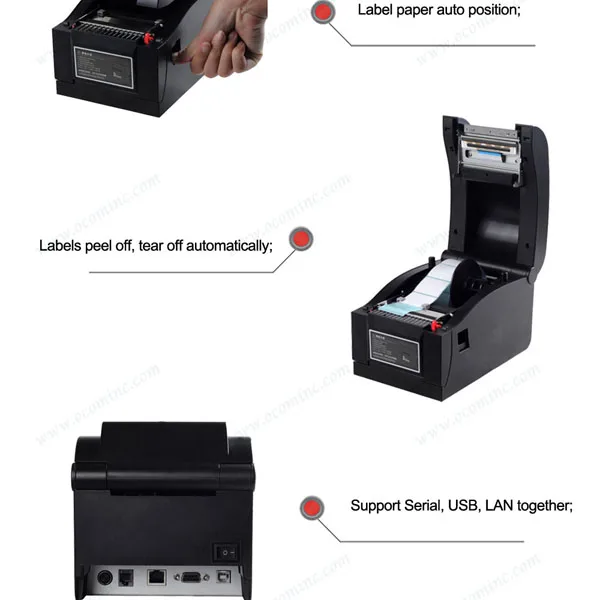

Features:

  • Label paper auto position;
  • Labels peel off, tear off automatically;
  • Adjust the printer head pressure;
  • Compatible with plenty of label software;
  • BMP, PCX, BAC images download store;
  • Support Serial, USB, LAN together;
  • Support PDF417, QR CODE, DOTMATRIX;

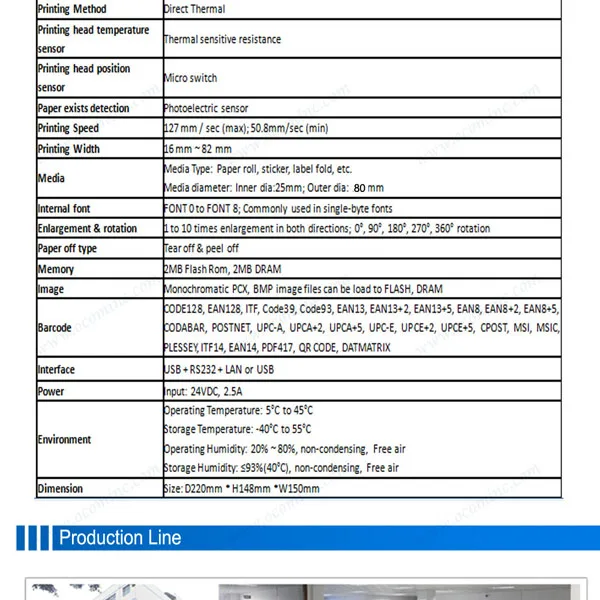

Specifications:

Printer Model

OCBP-005

Resolution

203 DPI (8 dot/mm)

Printing Method

Direct Thermal

Printing head temperature sensor

Thermal sensitive resistance

Printing head position sensor

Micro switch

Paper exists detection

Photoelectric sensor

Printing Speed

127 mm / sec (max); 50.8mm/sec (min)

Printing Width

16 mm ~ 82 mm

Media

Media Type: Paper roll, sticker, label fold, etc.

Media diameter: Inner dia:25mm; Outer dia: 80mm

Internal font

FONT 0 to FONT 8; Commonly used in single-byte fonts

Enlargement & rotation

1 to 10 times enlargement in both directions; 0 Degree , 90 Degree, 180 Degree, 270 Degree, 360 Degree rotation

Paper off type

Tear off & peel off

Memory

2MB Flash Rom, 2MB DRAM


Monochromatic PCX, BMP image files can be load to FLASH, DRAM

Barcode

CODE128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, PDF417, QR CODE, DATMATRIX

Interface

USB + RS232 + LAN or USB

Power

Input: 24VDC, 2.5A

Environment

Operating Temperature: 5 Degree C to 45 Degree C

Storage Temperature: -40 Degree C to 55 Degree C

Operating Humidity: 20% ~ 80%, non-condensing, Free air

Storage Humidity: <=93%(40 Degree C), non-condensing, Free air

Dimension

Size: D220mm * H148mm *W150mm





Product Description
